TRAFx counting equipment is for government
agencies and organizations who manage public lands, parks, and
infrastructures. Our current
G3 (Generation
III) designs, released May 2008, are the result of over eight years of steady refinement and
improvement.
A TRAFx G3 counting system consists of the following items:
|

|

|

|

|

|
|
A. TRAFx Counters
--with field cases |
B. TRAFx Dock
--with field case |
C. TRAFx Software
--Communicator
--Reporter |
D. TRAFx Cables
--serial and USB |
E. TRAFx Manuals
and CD |
|
For sales information,
please click
here.
|

 |
TRAFx
VEHICLE COUNTER — KEY FEATURES
-
Advanced Microelectronic Design
- Install at Roadside, Above or
Below Ground
- Self-Contained Design, no
External Wires or Tubes
- Ideal for Rural, Rugged and
Remote Roads
- Use as Permanent or Portable
Counter
- Very Small and Easy to Hide —
Reduces Vandalism Risk
- Low Operating, Maintenance, and
Installation Costs
- Long Battery Life (approx. 1
year)
- Large Memory Capacity (store >
400 million counts)
- Real-Time, Streaming Data Test
Feature
This innovative,
reliable vehicle
counter uses a precision Micro-Magnetic™ sensor to detect
passing vehicles. Passenger cars can be counted from up to
6 metres (20 feet) away, allowing coverage of two lanes
from a roadside installation. Roadside installations are
safer and easier to access than mid-lane ones. If the unit
is buried at the roadside, no road cuts or special tools
are required. The vehicle counter’s detection range is
user-programmable, and can be adjusted for double or
single lane counting. (read more...)
|
|
|
|

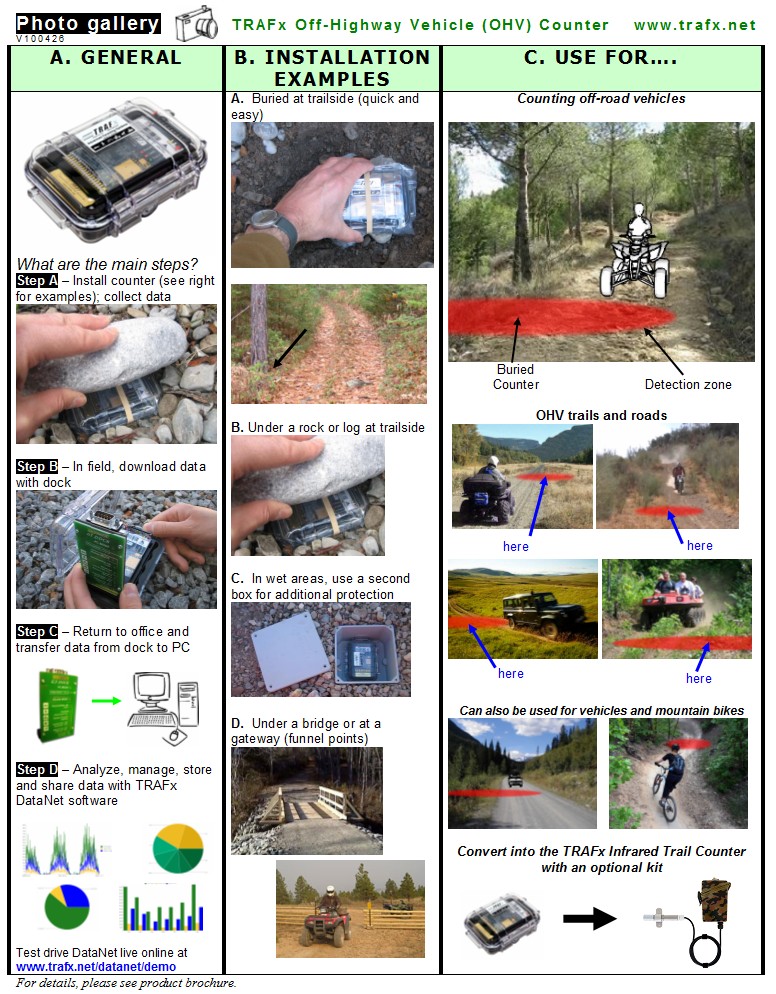

Put
the above TRAFx Vehicle Counter into OHV mode for quads,
motorbikes, jeeps, etc.
(read more...)

|
Put
the above TRAFx Vehicle Counter into Bike mode to count bikes on
paths and trails. The TRAFx Mountain Bike Counter is well suited
to count mountain bikes on single track trails. It can also be
used to count bikes on bike paths up to 2.0m (6.6ft) wide.
(read more...)
|
|
| |

Did you know the TRAFx Vehicle Counter can be easily converted
to the TRAFx Infrared Trail Counter? To learn more about TRAFx
versatility click here. |

 |
TRAFx INFRARED TRAIL COUNTER
— KEY FEATURES
- Advanced Microelectronic Design
- Detects and Counts Trail Traffic
- Accurate Infrared Scope
- Small and Easy to Hide — Reduces
Vandalism Risk
- Quick to Install
- Long Battery Life (approx. 3
years)
- Large Memory Capacity (store >
400 million counts)
- Real-Time, Streaming Data Test
Feature
- Optional Locking Steel Box
The
TRAFx Infrared Trail Counter is designed to count
general traffic on trails and paths ― hikers, joggers,
horseback riders, snowmobiles, cyclists, etc. Unlike most
infrared trail counters, it does not require a receiving
unit or reflector to operate. This results in a very
compact, easy-to-hide design, that reduces risk of
vandalism. Using a small precision infrared scope mounted
on a tree and pointed towards the trail, the TRAFx
Infrared Trail Counter detects and counts warm, moving
objects.
Camouflage "skins" superbly hide the unit and blend it in
with the forest environment. In busy, open areas (e.g.,
urban areas), a low-cost locking steel box can be used. The TRAFx Infrared Trail
Counter also works well in winter conditions on hiking,
ski, snowshoe, or snowmobile
trails. It is quick and easy to install, and uses three
small "AA size" alkaline batteries.
(read more...)
|
|
|
|

|
 |
The
TRAFx Pressure Pad Trail Counter is intended for special
situations where it is not feasible to use the above TRAFx
Infrared Trail Counter (read more...)
|
|
|
  |
|

TRAFx G3 Dock connected to vehicle
counter |
The TRAFx G3 Dock is
the interface between a TRAFx Counter and a PC. It can also be
used as a stand-alone "shuttle" to retrieve data from counters in
the field. The TRAFx G3 Dock has two modes:
PC Mode: for connecting
a counter to a desktop, laptop or pocket PC, to configure a
counter's settings or download data.
Shuttle Mode: for
downloading data from counters in the field, without a PC.
Just connect the dock, and it automatically downloads data and launches
a counter. Storage capacity: up to 375 TRAFx counters.
(read more...) |
 |
|
 |
TRAFx Communicator V1
This PC software is used to communicate with TRAFx
equipment. For example, use it to configure a counter's settings
(i.e., to optimize the counter's settings for your type of road or trail).
It is very easy to use.
|
 |
TRAFx Reporter V7 -
for data analysis and reporting
TRAFx Reporter is used to transform the raw data
collected by the counters into summaries, charts (i.e.,
graphs), tables, statistics, etc. It is simple to use and
produces professional data reports in a few seconds. |

TRAF Reporter
Software Version 7
(January 2008) |
 |
TRAFx Reporter is both
user-friendly and powerful. TRAFx Reporter's highlights
include:
- Import and report data files
from all TRAFx counter types
-
Generate
hourly, daily, weekly, or monthly analyzes and reports.
Click thumbnail on right to see an enlarged daily
report example.
- Automatically import, analyze and report
all data files contained in a single folder (a huge time
saver!)
- Determine weekend vs. weekday traffic
volumes
- Determine traffic volume averages for each
day of the week
- Determine hourly mean averages
- Determine five peak periods
- Select all or only a subset of the data for
analysis
- Filter timestamps into temporal groupings
- Automatically format reports for printing
- Prepare descriptive statistics, summaries
and charts
- Compare data from multiple counters on a
single chart (composite charts)
- Perform detailed gap analysis (duration
between timestamps) for both weekdays and weekend days
- Accurately handle discontinuous or
incomplete data sets
- Ignore selected data when calculating
- Correct for spurious data
|
- Automatically add counter/site name to a
report
- Separately determine hourly mean, medium,
mode, standard deviation, maximum and minimum for both
weekdays and weekend days
- Detect breaks in study sessions when
importing period data and compensate for these
- Accurately analyze and report data for
situations where an object (e.g., vehicle, walker) enters and
exits on the same road or trail
- Some of the special features include:
-Merge multiple raw data files
-Apply an adjustment factor (i.e.,
correction coefficient)
-Clean data
-Adjust for daylight savings
-Convert to discrete monthly files
New in Version 7:
Version 7 of TRAFx Reporter was released in January, 2008.
It has greatly enhanced
composite charts. Compare data from
multiple counters on the same chart
(days, weeks, months or years). Click on the thumbnails to see
details. |

daily |
|

weekly |
|
Information generated with TRAFx
Reporter software can be exported to Microsoft Access and other data
management programs. It can also be cut and pasted into popular
Microsoft programs such as Word and PowerPoint.
TRAFx Reporter software works with PCs running Microsoft Windows
2000 and higher. |
 |
|
| Two cables are included in the system package. One
serial cable and one USB cable
|
 |
| The TRAFx system package includes
two printed manuals, and a CD with software (TRAFx Communicator V1 and
TRAFx Reporter V7) and digital copies of all manuals. |
 |
